Timber Frame Breather Membrane

Lay this Timber Frame Breather Membrane directly over exterior wall panels. It keeps heavy rain out while letting internal moisture vapor flow out steadily. Less condensation protects wooden frames from rot and extends the whole building’s service life. The sheet is lightweight and flexible, so on-site installation goes fast and cuts labor costs a lot.

Product Specifications

Strength grades:

Four different load-bearing options (HD-K100 to HD-K160) to fit different local wind pressure and construction stability requirements

Vapor permeability:

Tested at 1000–2500 g/m²·24h, which steadily releases trapped moisture inside wall cavities

Construction durability:

It stands up to scratches from pneumatic staplers and repeated nailing on wooden studs without damage

Wide temperature tolerance:

Remains flexible from -40°C cold weather to hot summers, and holds up well against long-term UV exposure

Flame retardant option:

Our top HD-K160 grade meets B2 flame retardant standards, adding safety for all timber construction projects

Application Scenarios

This User-Friendly and Premium product-Timber Frame Breather Membrane offers practical utility across numerous timber-related sectors, particularly:

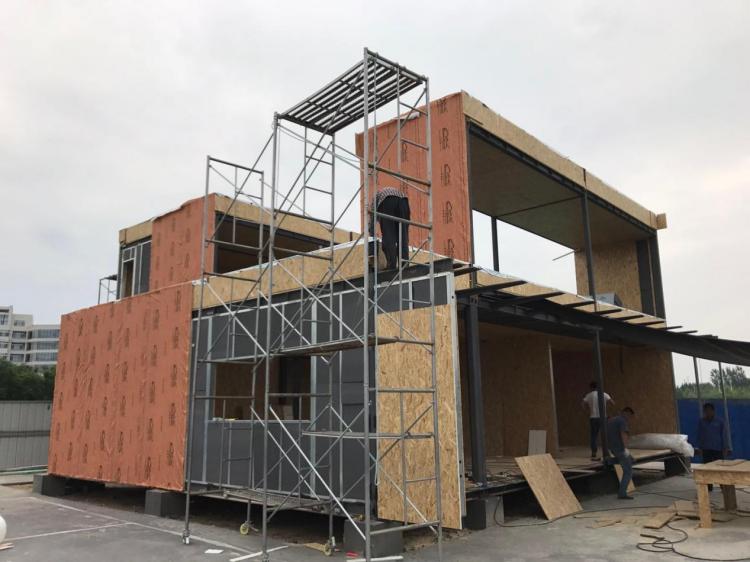

· External sheathing protection for modern wood villas, prefab modules, and lightweight timber residential units.

· Backing layer employed behind ventilated facades on light gauge steel frames and wooden structures.

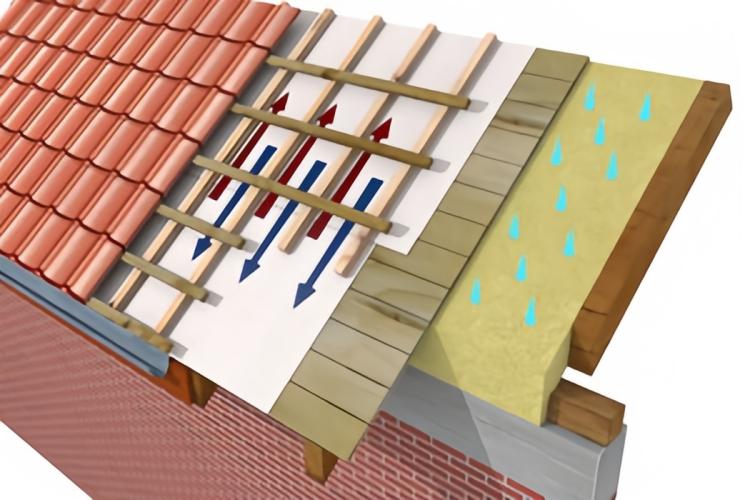

· Primary underlayment for sloped wood roofs, attic thermal layers, and cold roof assemblies.

· Perimeter gap sealing for window flanges, entrance door frames, and pipe routing outlets.

· Moisture regulation in energy retrofits targeting older residential and commercial wooden building envelopes.

Core Advantages

Xiashi Packing supplies Timber Frame Breather Membrane Brands recognized for distinct, real-world benefits:

1. Protect timber frames from long-term damage: It blocks rainwater and releases internal dampness, stopping mold, mildew and insect damage to keep wooden structures stable for many years

2. Temporary rain protection during construction: It works as a temporary cover when it rains mid-build, stopping exposed wall boards and OSB panels from absorbing water and warping

3. Less material waste on site: The sheet resists tearing when workers walk across it. Fewer accidental rips mean less wasted rolls and lower extra replacement costs

4. Better indoor living environment: It stops moisture from seeping into wall cavities and slows mold growth inside buildings

How to install it?

Correct installation makes a big difference to long-term performance. Attach the membrane to wall panels without stretching it tight; leave a little natural slack. All horizontal and vertical overlaps need a width of at least 10cm and must be fixed firmly. Use galvanized staples or ring-shank nails to fasten the sheet onto timber frames. Do not lay the membrane during rain or snow. Seal all seams, window edges and pipe holes with matching waterproof butyl tape to fully block air and water penetration.

FAQs

Q1: What will happen if the heavy rain hits a job site while the Timber Frame Breather Membrane is being installed?

A1: Its hydrophobic surface causes water to bead and roll away immediately. It acts as a protective umbrella for the wooden structure, preventing the OSB panels from absorbing rain and suffering structural deformations during the construction period.

Q2: Does this product trap vapor and potentially accelerate wood decay?

A2: Quite the contrary. The structure is engineered to facilitate moisture vapor release continuously. This ensures that dampness is never locked inside, and the wooden frame remains appropriately dry, effectively avoiding fungal infections.

Q3: Can this Timber Frame Breather Membrane be safely used in freezing winter climates?

A3: Absolutely. It sustains excellent physical flexibility and elasticity even when the ambient temperature falls to -40°C. You can fasten it onto the wood without any risk of cracking, stiffening, or fracturing.

Q4: How do I request a project sample and get a competitive quote?

A4: We dispatch a Timber Frame Breather Membrane Free Sample for your quality review. Reach out to our team to obtain the official Price, Price List, and Quotation. We accommodate Buy, Purchase, and Buy Discount bulk orders. With ample Timber Frame Breather Membrane in Stock, we guarantee rapid shipment to match your schedule.
