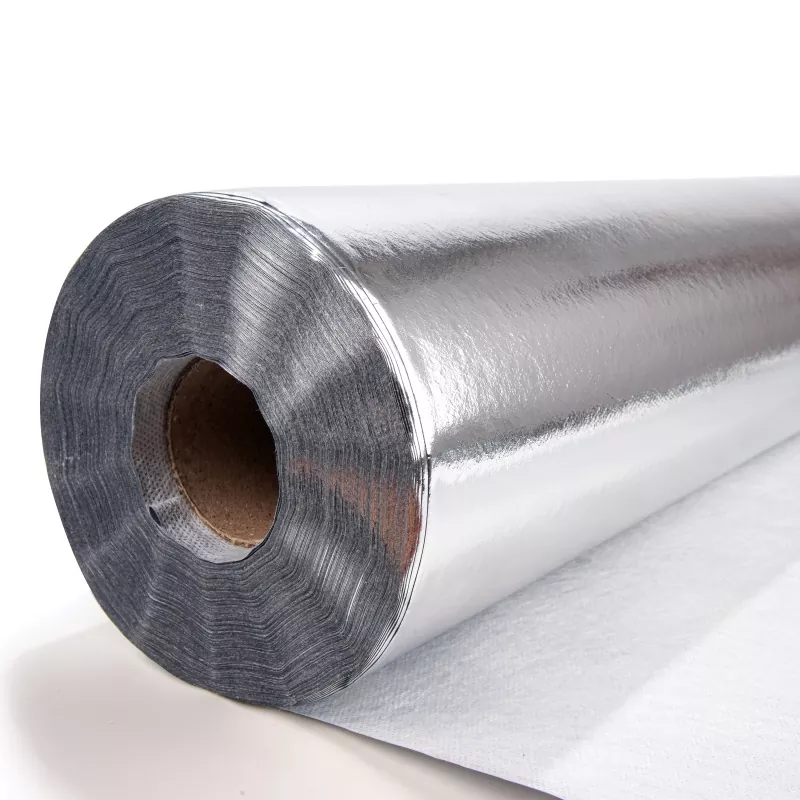

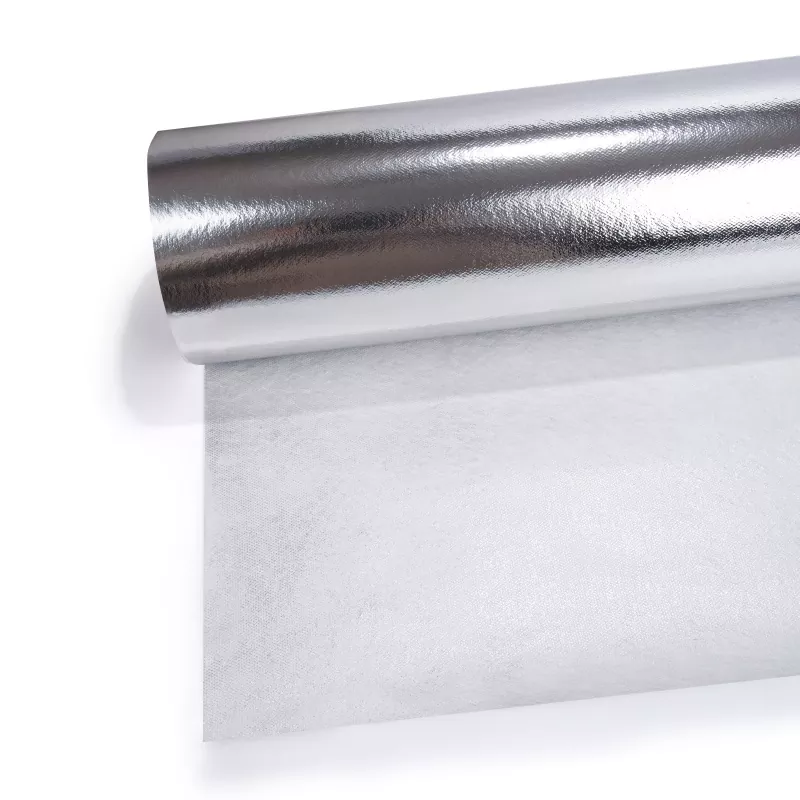

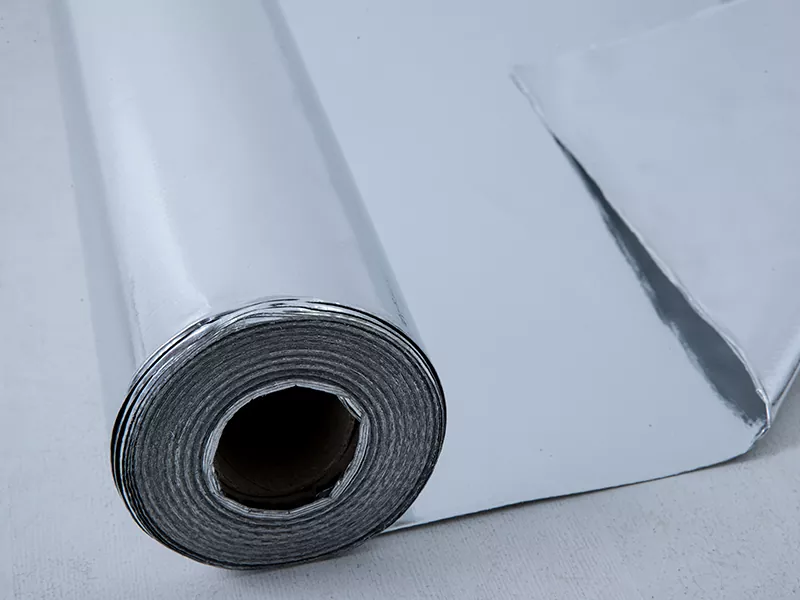

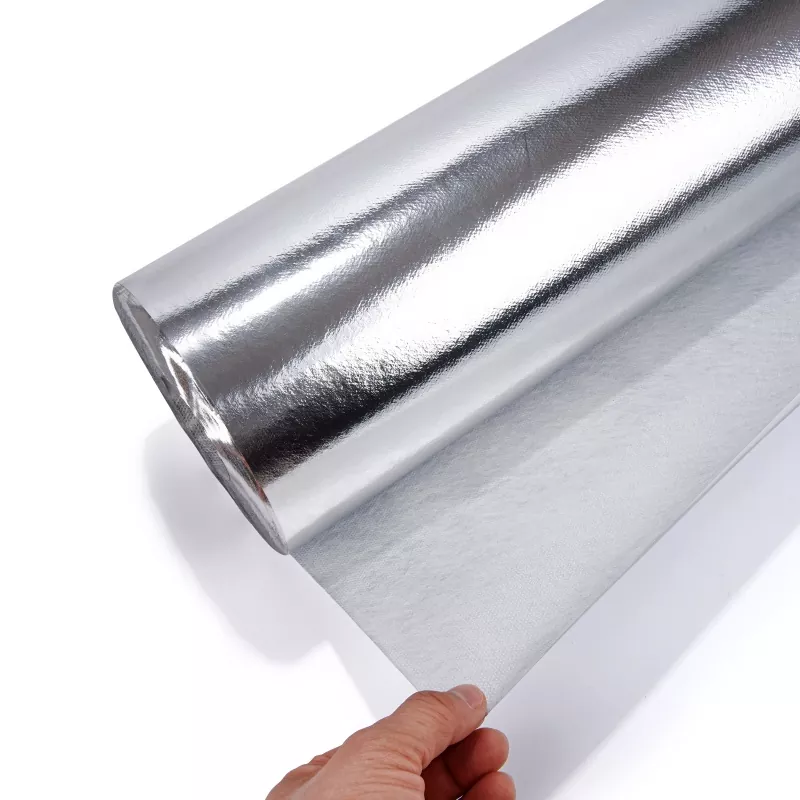

Thermal Insulation Alu Materials

Xiong County Xiashi Packing Co., Ltd. is a production factory of reflective film, with our own brand, Jinbo. Thermal Insulation Alu Materials is a kind of building material that is a functional material used for building enclosure structures (which can be placed on walls, roofs and floors) to reduce heat transfer and improve energy-saving effect.

Send Inquiry

Product Description

Jinbo Thermal Insulation Alu Materials are produced by the manufacturer Xiong County Xiashi Packing Co., Ltd. from China. The materials can reduce the loss of heating in winter and block the entry of heat in summer, making the room more comfortable.

At the same time, it greatly reduces the energy consumption of air conditioning and heating, and improves building durability and residential health.

What are the advantages of Thermal Insulation Alu Materials?

Reflective heat insulation: efficiently block radiant heat, cool down and save energy, and reduce the energy consumption of air conditioning

High airtight energy saving: improve the airtightness of buildings, reduce the loss of cold and heat, and save up to about 40%

Strong weather resistance and durability: -40℃~80℃, anti-UV and anti-aging, long service life

Safety and environmental protection: B2 level flame retardant, antibacterial and mold-proof, 100% recyclable, green environmental protection

Cost reduction and easy construction: no need for additional protective layer, easy installation, reducing comprehensive costs

Noise reduction to protect buildings: reduce the sound of rain on the roof and extend the life of buildings

Complete supporting facilities: complete special sealing accessories, reliable sealing, efficient construction

Product specification

CRITERIA	REFERENCE	RESULT
DUTY CLASSIFICATION	Table 1 AS/NZS 4200.1:1994	Light*
VAPOUR PERMEABILITY	ASTM E96	4.5ug/N.s
VAPOUR RESISTANCE	ASTM E96	0.22MN.s/g
VAPOUR BARRIER CLASSIFICATION
VAPOUR BARRIER CLASSIFICATION	ASTM E96	Low
EMITTANCE	AS/NZS 4201.5	Non-reflective
WATER BARRIER	AS/NZS 4201.4	High
ABSORBENCY	AS/NZS 4201.6	Unclassified
RESISTANCE TO DRY DE-LAMINATION
RESISTANCE TO DRY DE-LAMINATION	AS/NZ 4201.1	Pass
RESISTANCE TO WET DE-LAMINATION
RESISTANCE TO WET DE-LAMINATION	AS/NZ 4201.2	Pass

SHRINKAGE	AS/NZ 4201.3	<0.5%
TENSILE STRENGTH	AS 1301.448
1. Machine Direction(k/Nm)		4.3kN/m
1. Lateral Direction(k/Nm)		2.4kN/m
EDGE TEAR RESISTANCE	TAPPI T470
1. Machine Direction(N)		220N
1. Lateral Direction(N)		126N
BURST STRENGTH		>200N
FLAMMABILITY INDEX	AS/NZS 1530 Part 2	≤5
Allowable UV exposure prior to completion of cladding		4 Months

Application Scenarios

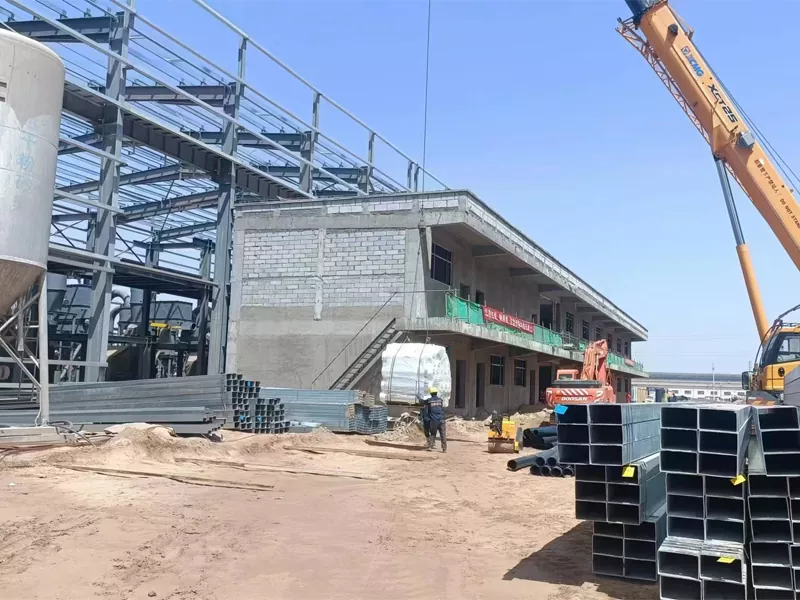

1. Steel structure roof/wall (color steel tile, sandwich panel roof)

2. Tile roof (slanted roof, hanging tile roof)

3. Standing edge bite the roof

4. Exterior wall insulation system (solid wall, plastered exterior wall)

5. Curtain wall system (between the curtain wall keel and the finishing layer)

6. Metal plate supporting roof (used with anti-condensation felt)

FAQs

Q: Where are Jinbo Thermal Insulation Alu Materials mainly used?

A: It is used for roofs, exterior walls, curtain walls, steel structures, tile roofs and other building enclosures.

Q: What is its core function?

A: Heat insulation, waterproof and breathable, energy saving and consumption reduction, while anti-condensation, anti-mold, and protection of building structures.

Q: Why can we achieve the energy-saving effect?

A: Improve the airtightness of buildings and reduce heat loss, which can reduce the energy consumption of air conditioning and heating by up to about 40%.
