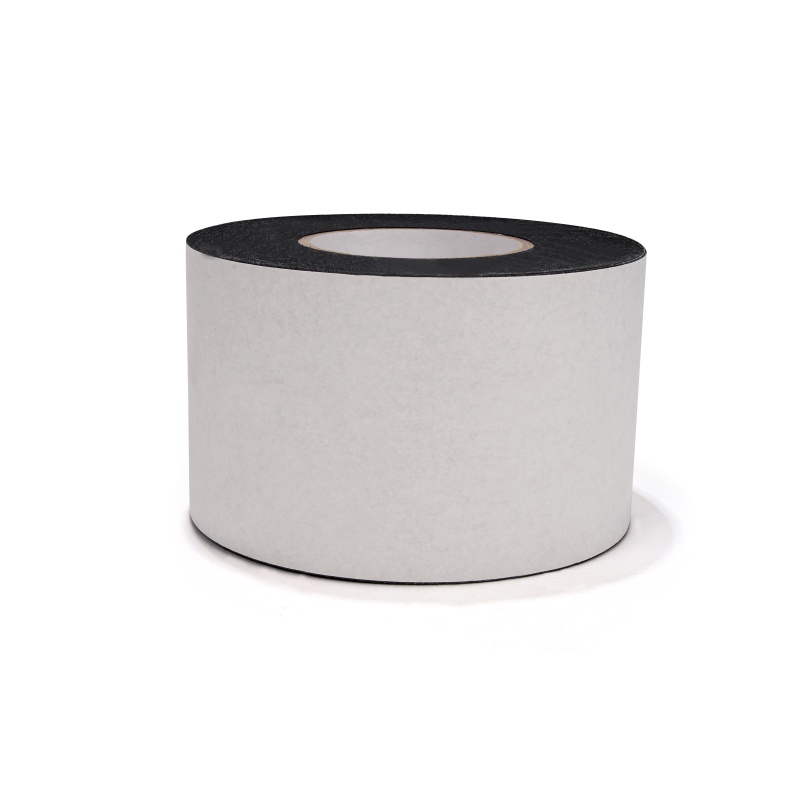

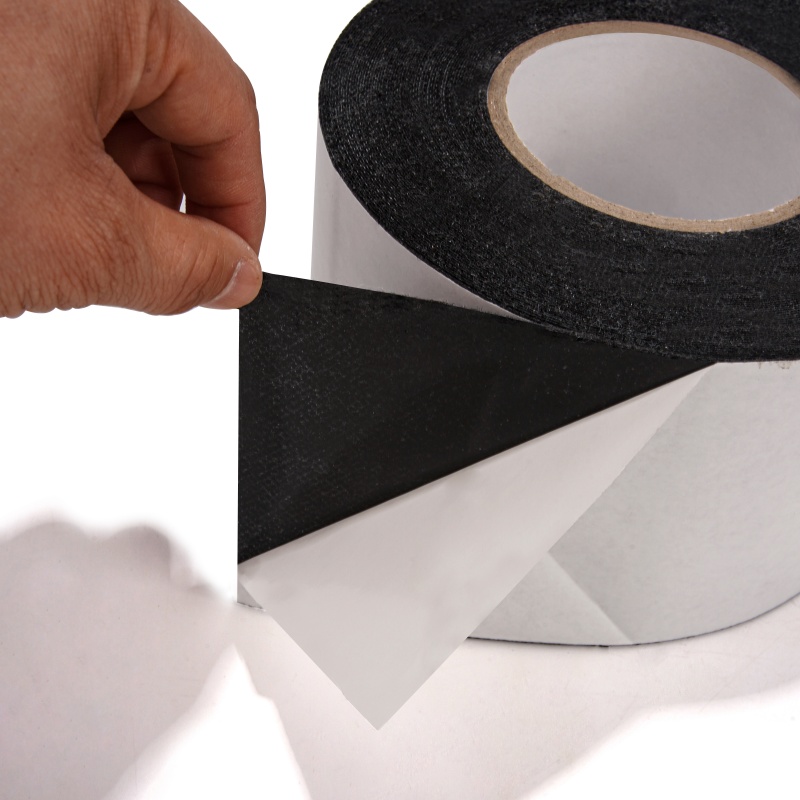

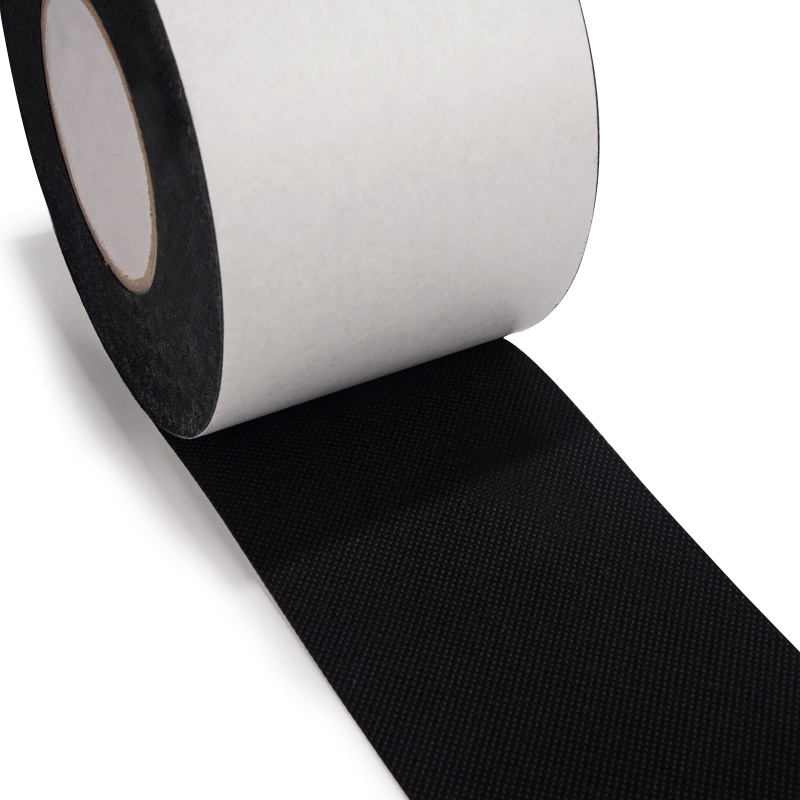

Butyl Rubber Tape

Butyl rubber Tape from Xia's Packing Co., Ltd. solves critical leakage risks in building envelope systems. Joint gaps in membrane materials, door/window-wall junctions and corner pipe penetrations are the most vulnerable spots for air and water ingress. Even high-performance membranes will fail if joint sealing is poor, letting rainwater seep in or creating hot-cold air convection that triggers condensation. This damages thermal insulation and pushes up building energy use dramatically.

Industry Pain Point

Building envelope joints, membrane laps, window/door penetrations and pipe openings are prone to water ingress, condensation and air leakage. Ordinary adhesive tapes cannot withstand thermal cycling, often peeling and losing seal quickly, which degrades insulation performance, corrodes steel structures and raises building operational energy costs.

Jinbo Sealant Tape targets these joint sealing challenges. Available in vapor-permeable and vapor-barrier grades, it delivers durable bonding with construction membranes, stopping leaks and condensation at the source for interior and exterior building applications.

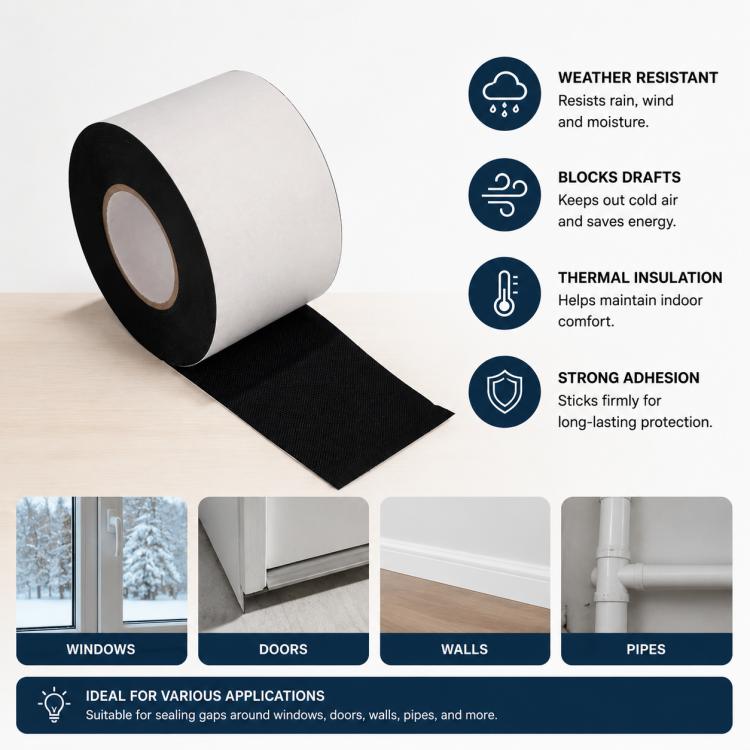

Butyl rubber tape application scenarios

Steel structure–steel plate composite wall and metal roof project: sealing of horizontal and vertical lap joints for the waterproof vapor-permeable film; lap sealing on the interior side of the vapor barrier film; sealing around openings in metal panels and fan access openings.

External stone-clad or plastered curtain wall system: overlap and seal the waterproof vapor-permeable film on the outer side of the insulation layer; seal the gaps around the junctions between door/window frames and the wall surface.

Wooden structures, prefabricated buildings, and passive houses: airtight and watertight sealing for all overlaps, corners, and wall penetrations (including pipe holes) in building envelope materials.

Roofing work: Overlap installation of waterproof and breathable roofing membranes; sealing treatment for roof ridges, eaves, and pipe penetration joints. Membrane repair for damage: Patch repair of localized damage to waterproof or vapor barrier membranes during on-site construction.

Specification

Project References

Jinbo® butyl rubber tape , as a complementary component for building envelope systems, is widely used alongside complete membrane systems in major domestic and international projects.

Zhanjiang BASF Plant – Steel Structure Building Enclosure Joint Sealing

Starbucks China Coffee Innovation Industrial Park – Building Air Tightness Joint Treatment

Danzhou Sports Center – Large Public Venues Roof Curtain Wall Enclosure System

We provide services to thousands of domestic industrial plants, prefabricated housing projects, and curtain wall projects; our products are mass-exported to numerous countries across Europe and North America, and we accommodate third-party testing requirements from our clients.

FAQs

Can adhesive tape be used to repair damaged areas on membrane materials?

A：Yes. For the breathable version, apply an external waterproof and breathable film; for the thermal insulation version, apply an internal thermal insulation film. Before repairing, clean the area around the damaged spot thoroughly; ensure the adhesive tape covers the damaged edge by at least 5 cm.

Does it support samples and custom specifications?

A：Supports the mailing of test samples; customizable in width and roll length to facilitate third-party testing arrangements for clients.

When construction is carried out under low-temperature conditions, could the adhesive tape's adhesion fail?

A：The product does not develop any cracks when bent at 30°C; however, for application in low-temperature environments, it is recommended that the substrate temperature be no lower than 5°C. After bonding is completed, the adhesive layer will gradually reach the designed bonding strength.

Share your project type, required tape grade (vapor-permeable / vapor-barrier), width, roll length and estimated consumption. We will provide product datasheets, sample arrangements and a formal quotation for your building envelope sealing project.
